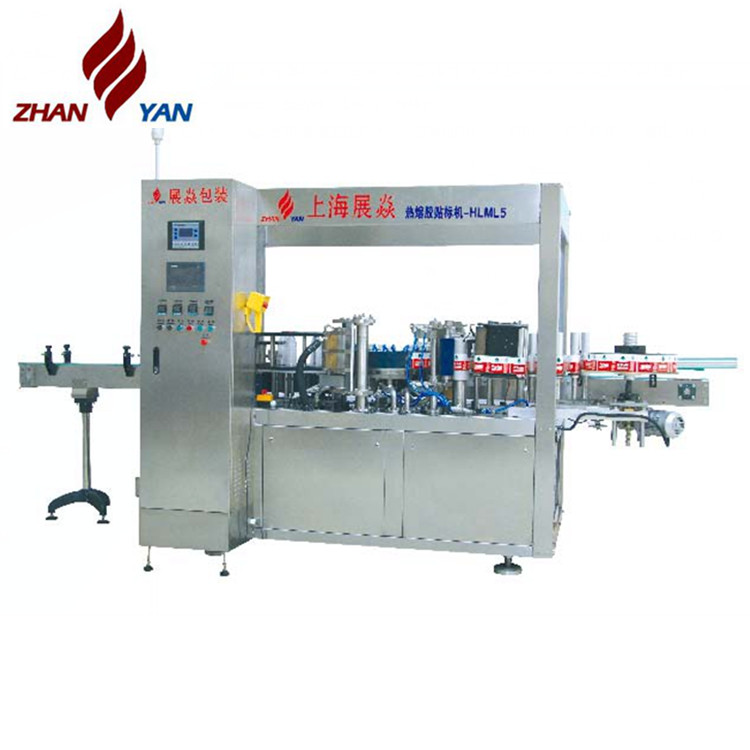

Automatic OPP BOPP hot melt glue bottle labeling packing machine available for round bottle can jar cap

Name: Automatic OPP BOPP hot melt glue bottle labeling packing machine available for round bottle can jar cap
Brand: zhanyan
Price: 1 USD

After-sales Service Provided : Engineers available to service machinery overseas

Application : Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical

Packaging Material : Wood, pvc ops pet paper bopp

Type : Other, ZYP-HLML4

Condition : New

Packaging Type : Barrel, Bottles, Cans, Cartons

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 380/220v 50/60hz

Power : 13.5KW

Place of Origin : Shanghai, China (Mainland)

Brand Name : zhanyan

Model Number : HLML4

Weight : 2200kgkg

Dimension(L*W*H) : 3730mm*1314mm*2050mm

Certification : CE certificate

material of frame : stainless steel SUS304

After sale sevice : support

Packaging Type Bottles : Packaging Material: Glass, Metal, Paper, Plastic

Label Material : OPP, BOPP,PP,PAPER,PE etc.

Capacity : 9000-15000bph

Commodity, : Food, Machinery & Hardware, Medical

Machine : full automatic

Main material : stainless steel SUS304

Supply Ability : 5 Set/Sets per Month

Packaging Details : 1.For packing, generally we use wood box outside as the pictures shows, with pallet. 2.Generally size around 3730*1314*2050mm(min),Up to model.also have bigger and smaller size 3.Weight range from 2200kg 4.Delivery date, generally need 30 to 50

Port : ShangHai

MOQ : 1 Set/Sets

Price : Negotiable

Contact Now

Automatic Hot Melt Glue Labeling Machine

Automatic OPP BOPP hot melt glue bottle labeling packing machine available for round bottle can jar cap

Technical Parameters ,

Automatic Hot Melt Adhesives Applicator Machine For Bottles Cups Cans

Application	Round -shaped bottles Dia. 40~100mm
Powder	380/220VAC , 8kw
Label size	Max L 330mm*W 120mm
Bottles/hour	2000~18000
Inner Dia. Of label (mm)	3”~10” adjustable
Decibel (CB)	Less than 65db
Operation temperature	-10~+40°C
Humidity	Between 30%~80%
Total weight (KG)	3000
Outline Dimension	3730x1314x2050mm (L×W×H)

Bottle types: Automatic OPP BOPP hot melt glue bottle labeling packing machine available for round bottle can jar cap

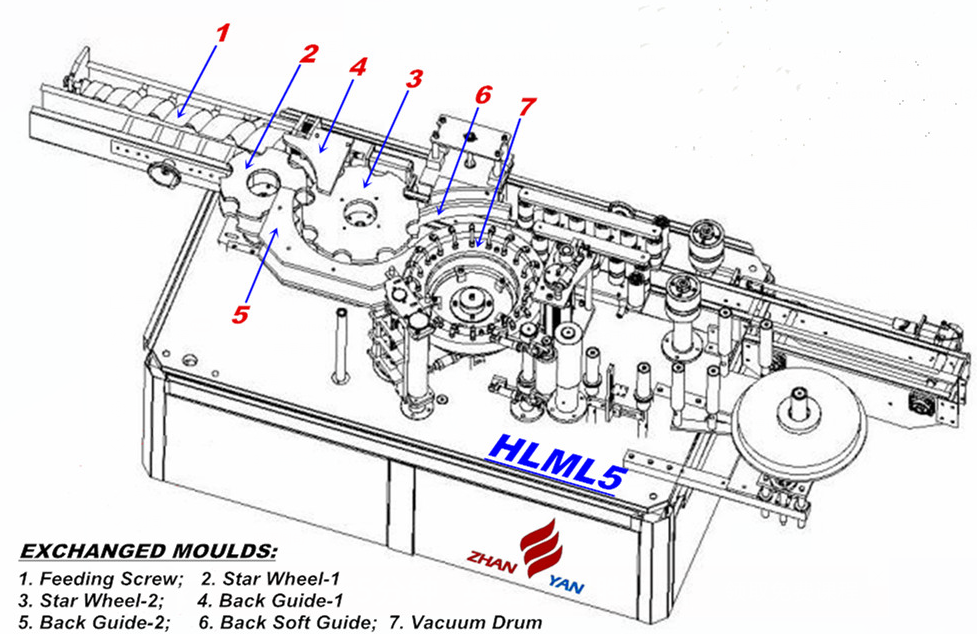

Sketch Map:

ZYP- hot melt OPP labeling machine sketch map:

Automatic OPP BOPP hot melt glue bottle labeling packing machine available for round bottle can jar cap

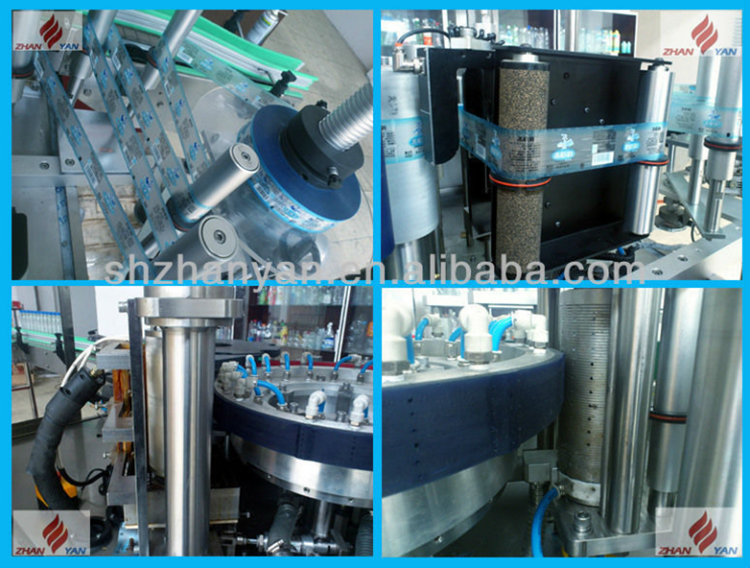

HLML Parts:

Automatic OPP BOPP hot melt glue bottle labeling packing machine available for round bottle can jar cap

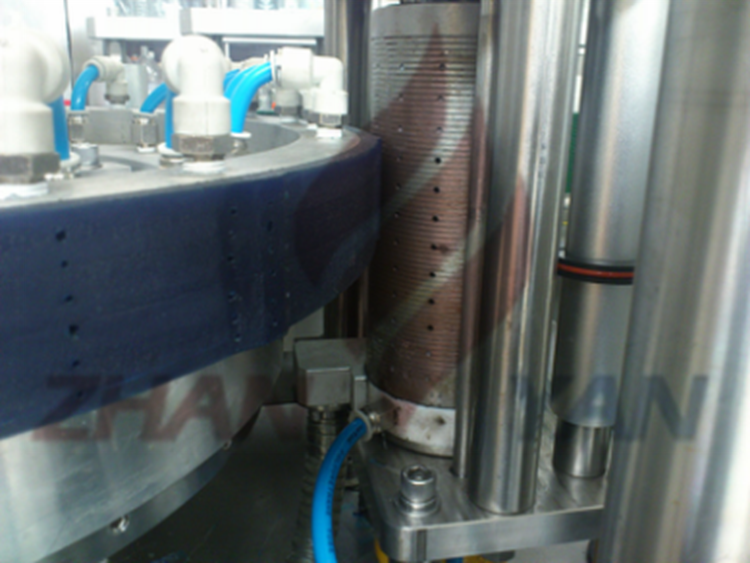

Cutting parts

Cutting parts:

Automatic OPP BOPP hot melt glue bottle labeling packing machine available for round bottle can jar cap

Using photo sensor to keep label length as demanded , label which has been cut will be fed to vacuum drum to prevent static electricity generated for label to ensure the smooth supply of labels, should mange label well.

The phenomenon of static electricity will be eased partially by adjustment of the amount of vacuum and air consumption;

Cutting label smoothly whether rotary cutting parts runs at high speed or not, roller surface of the parts are made of special material by spraying, to minimize the label static the cutting knife made of special heat treatment to protect the long

service life, simple and quick replacement to maintain a certain degree of vacuum pump, adjustment valves operation is easy

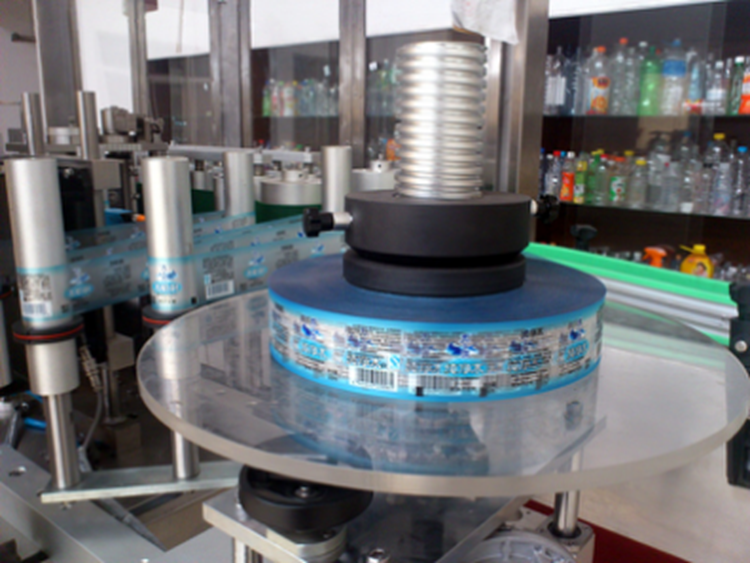

Label Station

Label Station:

Automatic OPP BOPP hot melt glue bottle labeling packing machine available for round bottle can jar cap

Roll form can ensure that label intension whether machine speed is high or not, it has the function of brake to adjust the cutting parts slightly

Packaging & Shipping

Packing adn shipping:

Pallet	Available	picture
Inner Package	Plastic Material
Outer Package	Wooden Box

Automatic OPP BOPP hot melt glue bottle labeling packing machine available for round bottle can jar cap
